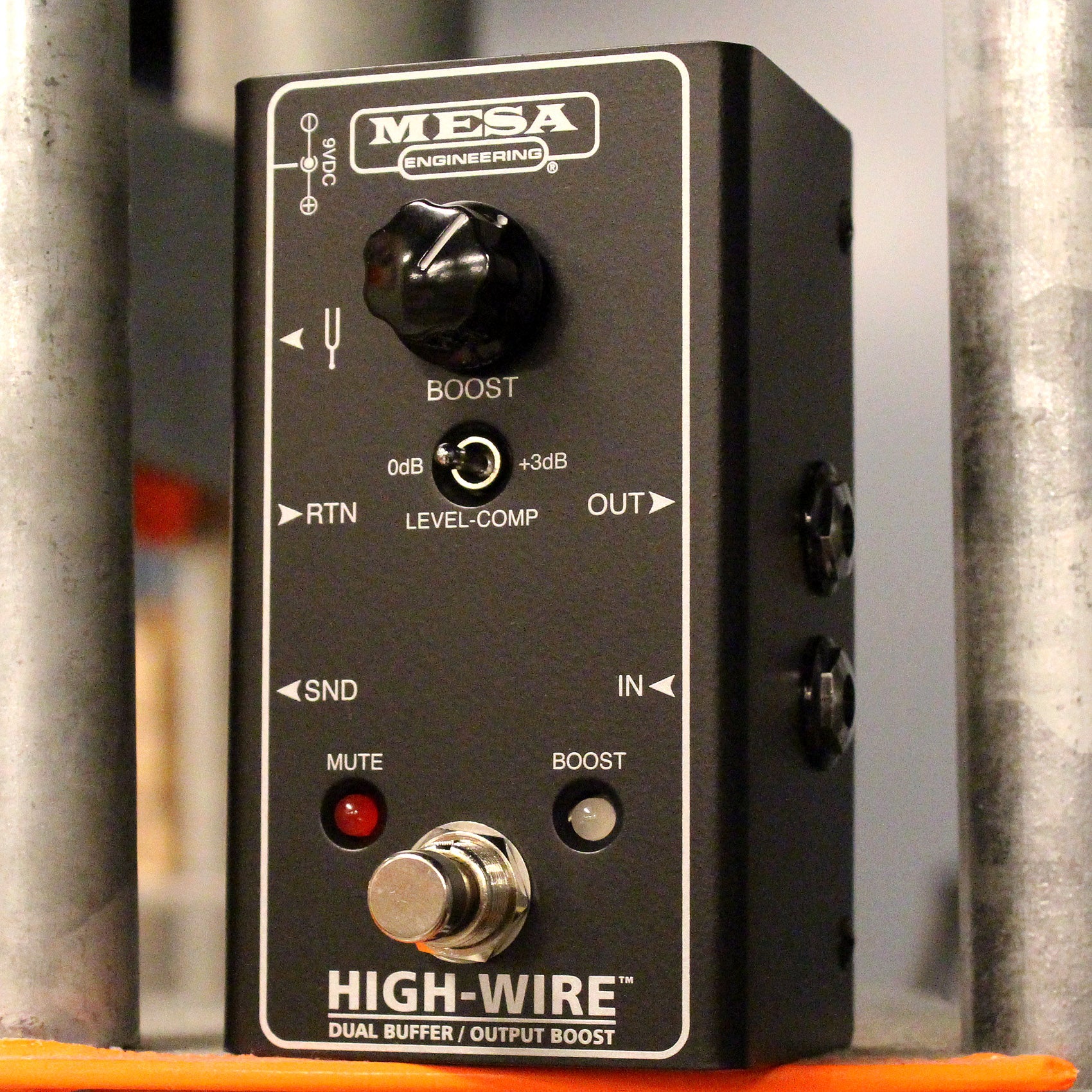

The new Mesa Boogie High-Wire Pedal is here!

The Mesa Boogie HIGH-WIRE is a Dual Buffer and Line Driver in a one-stop solution that addresses both Input and Output challenges in the same space saving chassis. Between Instrument and pedals, it provides a stable, consistent load for your guitar’s pickups, ensuring your signal arrives at the first pedal intact and full of Tone. From Pedal Board to the amplifier, it not only buffers the signal, ensuring optimum impedance loading and performance, but also allows for increased signal levels for extra long cable runs via the built-in Line Driver (Footswitchable Boost) feature. As with the Stowaway, all buffer circuitry is 100% discrete Class-A. The HIGH-WIRE also incorporates a fixed +3dB BOOST on a top mounted mini-toggle. The Footswitch is Dual Function and allows both the variable BOOST when hit once and a MUTE when held for a second. The HIGH-WIRE is the ultimate all-in-one Pedal Board signal loss remedy.

High-Wire Features:

• Made in Petaluma, California with the World’s Finest Materials
• 100% Discrete Class-A STOWAWAY™ Input Buffer Circuit
• Provides the tone & feel of plugging directly into a high-quality tube amp
• RFI Filtering minimizes radio-frequency interference and noise
• Segregated Send & Return Effects Loop provides guitar AND amp with a resolute load and source for the most consistent tone and feel possible
• Integrated CLEARLINK™ Output Line Driver with +3db Level Comp Switch – Capable of driving long ¼” cable runs directly to your amp’s input
• Tuner Output – Provides an “always on” buffered output separate from the main signal chain to feed tuner
• Dual Function Boost/Mute (Tune) Footswitch – Press on/off to activate Boost – Press and hold to activate Mute/Tune
• Variable, Footswitchable Boost Control from Unity up to +22db of Output Boost
• Boost On/Off Status LEDMute (Tune) On/Off Status LED
• 9-12VDC External Power Jack Input (power supply not included)
• SPECIFICATIONS
• Input Impedance: 1M Ohm
• Output Impedance: 150 Ohm
• Input Buffer Design: Discrete Class-A (MESA Stowaway™)
• Output Buffer Design: High-Speed, Low Noise Op-Amp (MESA Clearlink™)
• Nominal Operating Voltage: 9VDC
• Maximum Operating Voltage: 12VDC
• Typical Current Draw: 55mA @ 9VDC
• DC Adapter (not included):
• WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9-12VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug
• Weight: 0.743 lbs (337g)
• Dimensions (W x D x H): 2.48 x 4.48 x 2.06 inch (63 x 114 x 52 mm
